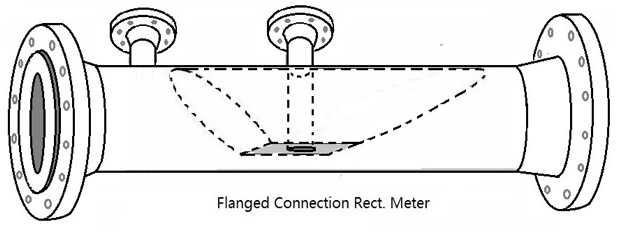

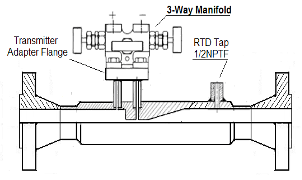

RECT FLOW METER

The PFS RECT Flow Meter redefines flow measurement with its suspended, inverted-dyke throttle block and rectangular flat bottom. Inspired by Venturi and Wedge meters, this hybrid design fuses their strengths into a superior solution, excelling in gas, steam, and liquid flows—including slurries and abrasive media.

- Coal industries (fertilizer, coal-gas, hydrogen plants).
- Poly-silicon production.
- Petrochemicals and mining.
- ISO 5167.2-2003
- ASME MFC 3M
- DIN 1952, BS 1042.
- EN 10204.3.1
Download RECT Flow Meter Datasheet

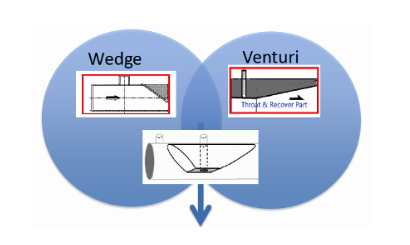

Innovative hybrid design: Venturi’s stability + Wedge’s resilience.
Accuracy: ±0.25% to ±0.5% (vs. ±1%-5% for orifice meters).

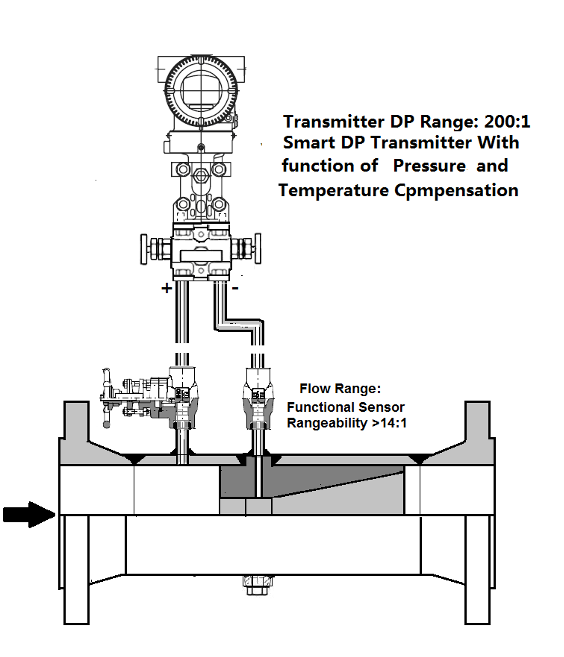

Rangeability: Up to 200:1 (vs. 10:1 for orifice).
Durability: 2-5x longer life than wedge meters.
Low head loss: 10%-25% DP (vs. 50%-80% for orifice).
Compact: 4D upstream run (vs. 15D+ for traditional meters).

KEY ADVANTAGES

Venturi Influence: Streamlined throttling channel minimizes turbulence and head loss, outperforming orifice meters.
Wedge Influence: Open, hardened throttle block with obtuse edges prevents clogging and resists erosion, unlike sharp-edged designs.
Combined Excellence: Merges wide rangeability, durability, and efficiency into a single, groundbreaking meter.

INNOVATION SPOTLIGHT

Models & Technical Specifications:




    Model
    Distinction
    Sizes
    Pressure Ratings
    Accuracy
    Rangeability
    Temperature Range
    End Connections
    Use Case


    HBX-CF
    Circular, high-pressure versatility
    1.5" to 100"
    150# to 2500#
    ±0.5%
    10:1 to 60:1
    -180°C to 800°C
    Flanged, butt-weld, threaded
    General-purpose flow


    HBX-RF
    Rectangular, low-pressure, large pipes
    4" x 4" to 100" x 100"
    150# to 300#
    ±0.5%
    10:1 to 60:1
    -30°C to 400°C
    Flanged, welded
    Air flow, water supply


    HBX-1
    High-accuracy, wide-range
    3/8" to 24"
    150# to 2500#
    ±0.25%
    30:1 to 200:1
    -180°C to 800°C
    Flanged, butt-weld, threaded
    Precision clean fluids

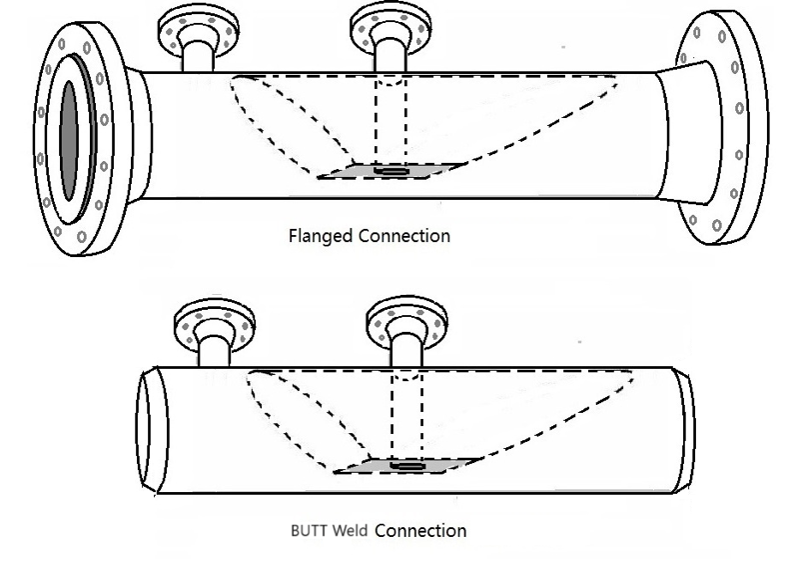

Rec Flow Meter HBX-CF

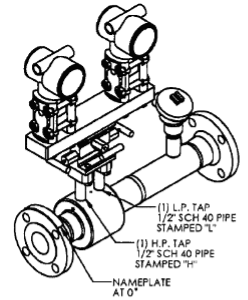

Rec Flow Meter HBX-1

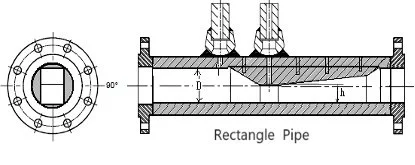

Rec Flow Meter HBX-RF
